FT14 Screwed

FT14 Screwed Product detail
Application

Ball float steam traps are extremely versatile and work efficiently on both light and heavy condensate loads. Although compact in size, their discharge capacity is high and continuous, ensuring maximum heat transfer. These traps are the best choice for draining plant with automatic temperature control.

Size and pipe connections



DN15-DN25 Screwed BSP or NPT

DN15-DN25 Flanged EN 1092 PN16/PN25,ANSI 150

Material

Part	Material
Body/Cover	A216 WCB
Cover bolts	A193 B7
Cover gasket	graphite+SS304 or ss316
Valve seat	A276 430
Ball float and lever	A240 304
Air vent assembly	A240 304

Note:1.The material can according to the customer's request or actual valve working condition.
2.The surface of valve can use high temperature resistant black or blue paint,but also can according to the customer's request.



Limited condition

Body design conditions	PN40
PMA Maximum allowable pressure	40Bar g
TMA Maximum allowable temperature	300°C
Maximum differential pressure（ΔPMX)	32Bar

Capacities

Installation



Horizontal connections with flow from right to left.

Horizontal connections with flow from left to right.

Standard

Design standard: ISO6552; EN26704

Face to face dimension: EN26554

Test & inspection: EN26948

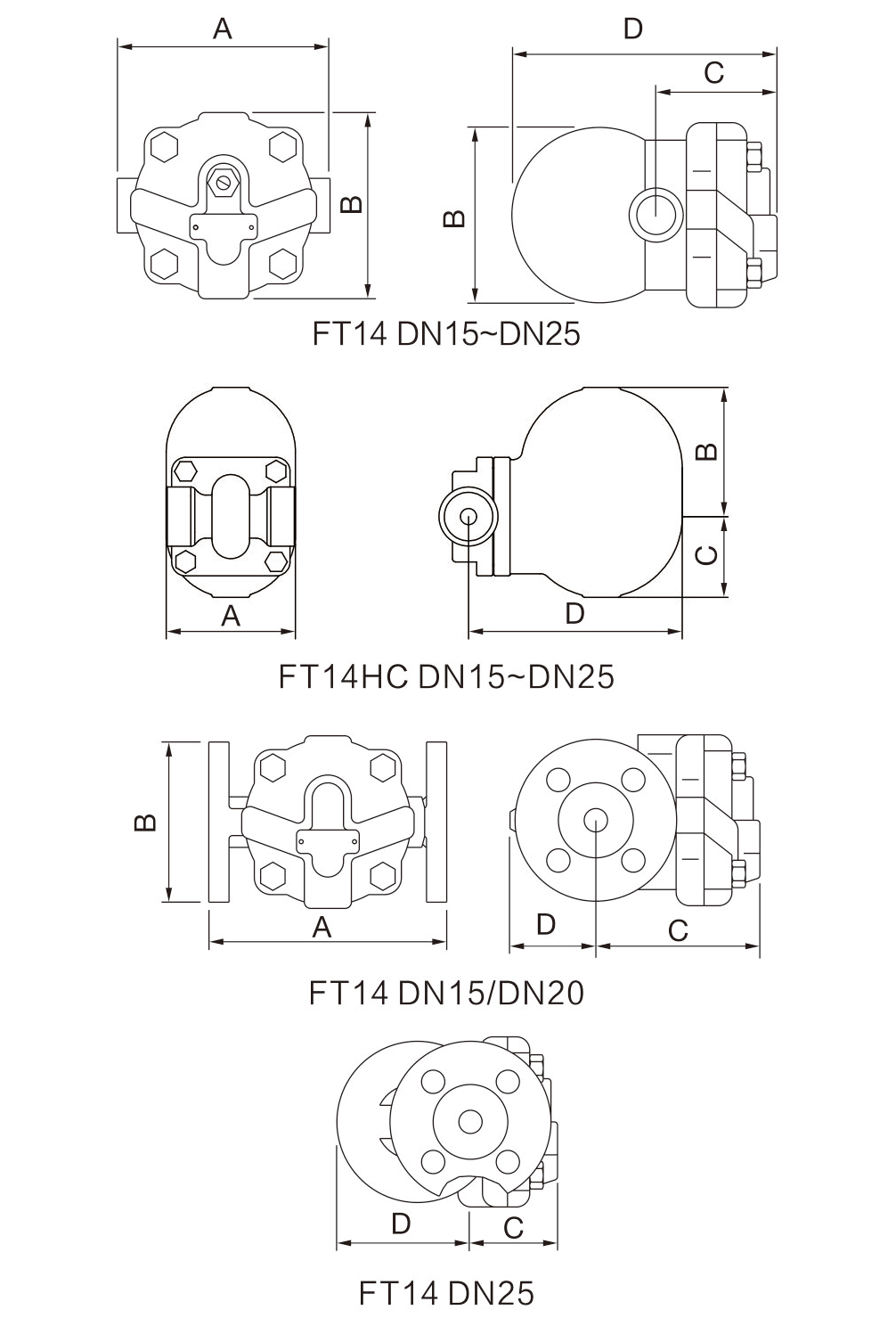

Dimensions/weights(approximate)in mm and kg



FT43

Size	A	B	C	D	Weight
DN15	150	105	70	250	9
DN20	150	105	70	250	9.2
DN25	160	105	70	250	9.5
DN32	230	115	75.5	335	20
DN40	230	115	75.5	335	20
DN50	230	115	75.5	350	21.5



FT44

Size	A	B	C	D	Weight
DN32	270	115	75.5	225	19.5
DN40	270	115	75.5	225	19.5
DN50	270	115	75.5	225	20
DN65	270	115	75.5	225	22
